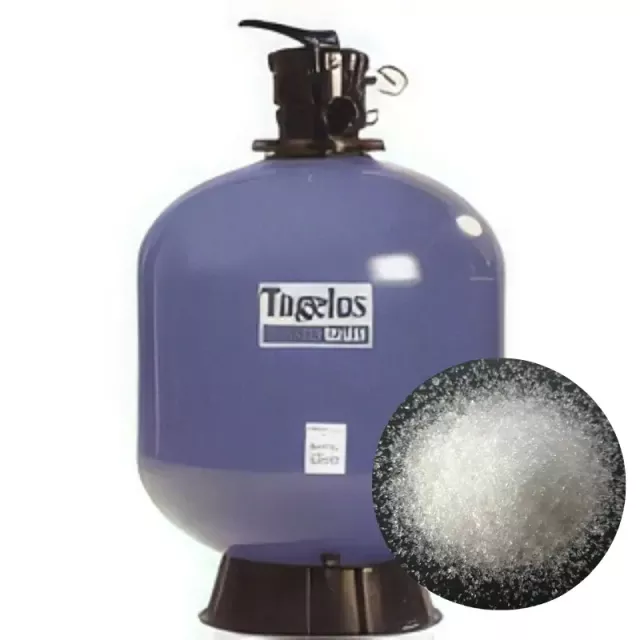

Tagelus Top Mount Filter

Tagelus Top Mount Filter Information

Time-proven internal design ensures water is exposed to maximum surface area of sand for optimal filtration performance and more efficient backwashing.

• Flow system design also ensures maximum run times between backwashing to save you time.
• Combination sand and water drain speeds servicing and winterizing.
• All internal parts are threaded for fast and easy service.
• Maximum operating pressure 3.5bar.
• Maximum operating temperature: 50 degrees C.

Media - requirement

• TA40 19" Filter - 70kg Sand 15kg Gravel 3-5mm
• TA60 24" filter - 150kg Sand - 17kg Gravel 3-5mm
• TA100 30" Filter - 235kg Sand - 50kg Gravel 3-5mm

When using glass media supplied you can reduce grade 1 (equivalent to sand) by 15%

Flow rates based at 10m Head:

• 19” – 8.5m3/hr - 1.5” female threads.
• 24” - 14m3/hr - 1.5” female threads.
• 30” - 22m3/hr - 2” female threads.

As a rough guide:

• A 19” – Tagelus (TA40) filter will do a domestic pool up to 51m3
• A 19” – Tagelus (TA40) filter will do a domestic pool up to 84m3
• A 30” – Tagelus (TA100) filter will do a domestic pool up to 132m3

NB: These calculations should be treated as a guide - your pool engineer should calculate based on your specific pool requirements.

10 year full tank warranty.
