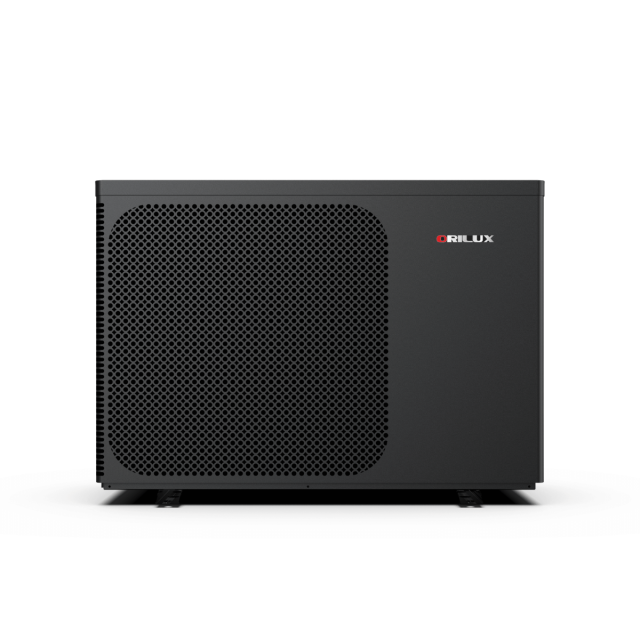

Orilux AXS Swimming Pool Heat Pump
The Orilux AXS Swimming Pool Heat Pump range offers an efficient and reliable way to heat your swimming pool while keeping energy costs under control. Combining full inverter technology, quiet operation and durable construction, the AXS range is built to provide comfortable swimming temperatures throughout a longer season.
-  Unbeatable Prices – We Won’t Be Beaten!
- Â Next-Day Delivery Available - if ordered before 12pm.
Â
The Orilux AXS Swimming Pool Heat Pump range offers an efficient and reliable way to heat your swimming pool while keeping energy costs under control. Combining full inverter technology, quiet operation and durable construction, the AXS range is built to provide comfortable swimming temperatures throughout a longer season.
- Unbeatable Prices – We Won’t Be Beaten!
- Next-Day Delivery Available - if ordered before 12pm.
Orilux AXS Swimming Pool Heat PumpÂ
Orilux AXS range has been designed to make pool heating more efficient, quieter and easier to live with. Using intelligent full inverter technology, the heat pump automatically adjusts its output to match your pool's heating demand, using only the energy needed to maintain your chosen temperature.
Instead of constantly switching on and off like traditional heat pumps, the AXS range runs smoothly and efficiently, helping to reduce electricity consumption while maintaining a consistent water temperature.
Whether you're opening your pool earlier in spring, extending your swimming season into autumn or simply making the most of every sunny day, the Orilux AXS range delivers dependable performance for residential swimming pools.
Â
Key Features
- Full inverter compressor technology
- TurboSilence control system
- High efficiency heating
- Energy consumption monitoring
- Aluminium alloy casing
- Titanium heat exchanger
- Low maintenance
- Suitable for domestic swimming pools
- Available in a range of outputs to suit different pool sizes
Â
Specification:Â
Â
| Model | AXS55 | AXS60 | AXS75 | AXS85 | AXS110 |
|---|---|---|---|---|---|
| Advised pool volume (m³) | 41–55 | 41–60 | 51–75 | 61–85 | 76–110 |
| Operating air temperature (°C) | -10~43 | ||||
| Performance Condition: Air 26°C, Water 26°C, Humidity 80% | |||||
| Heating capacity (kW) - Turbo mode | 15.7 | 17.4 | 21.6 | 24.5 | 30.5 |
| Heating capacity (kW) - Smart mode | 12.6 | 13.9 | 17.3 | 19.6 | 24.4 |
| COP in Smart Mode | 6.9 | 7.3 | 6.7 | 7.2 | 7.0 |
| COP | 16.2~6.0 | 15.8~6.3 | 16.0~6.2 | 16.2~6.2 | 15.9~6.1 |
| COP at 50% capacity | 10.4 | 10.9 | 11.3 | 10.6 | 11.0 |
| Performance Condition: Air 15°C, Water 26°C, Humidity 70% | |||||
| Heating capacity (kW) - Turbo mode | 10.3 | 11.3 | 14.2 | 17.2 | 20.6 |
| Heating capacity (kW) - Smart mode | 8.2 | 9.0 | 11.4 | 13.8 | 16.5 |
| COP in Smart mode | 5.3 | 5.0 | 5.2 | 5.0 | 5.4 |
| COP | 7.5~4.4 | 7.3~4.3 | 7.4~4.4 | 7.6~4.5 | 7.5~4.9 |
| COP at 50% capacity | 6.9 | 6.8 | 6.3 | 6.5 | 6.8 |
| Sound pressure at 1m dB(A) | 40.7~52.1 | 41.3~53.4 | 41.1~55.2 | 41.9~55.6 | 43.5~56.3 |
| Sound pressure of 50% capacity at 1m dB(A) | 44.7 | 45.4 | 46.5 | 46.4 | 48.4 |
| Sound pressure at 10m dB(A) | 20.7~32.1 | 21.3~33.4 | 21.1~35.2 | 21.9~35.6 | 23.5~36.3 |
| Compressor | Twin-rotary Mitsubishi DC inverter | ||||
| Heat exchanger | Spiral Titanium Tube in PVC | ||||
| Casing | Aluminium-alloy | ||||
| Power supply | 230V~/1Ph/50Hz | 400V 3N~/50Hz | |||
| Rated input power at air 15°C (kW) | 0.22~2.33 | 0.25~2.61 | 0.31~3.22 | 0.36~3.80 | 0.44~4.20 |
| Rated input current at air 15°C (A) | 0.96~10.13 | 1.09~11.35 | 1.35~13.91 | 1.57~16.52 | 1.91~18.26 |
| Max input current (A) | 12.5 | 16.0 | 18.5 | 18.5 | 23.0 |
| Advised water flux (m³/h) | 4~6 | 4~6 | 6.5~8.5 | 8~10 | 10~12 |
| Water pipe in-out size (mm) | 48.3 | ||||
| Net dimensions (L × W × H) (mm) | 893 × 432 × 650 | 939 × 432 × 650 | 954 × 429 × 748 | 995 × 432 × 750 | 1124 × 429 × 946 |
| Net weight (kg) | 60 | 65 | 66 | 70 | 98 |
| Qty per 20'FT / 40'HQ (sets) | 78/180 | 78/168 | 52/165 | 50/162 | 42/92 |
Â
Built for Efficient, Everyday Heating
Every Orilux AXS heat pump is designed around long-term efficiency.
By extracting heat from the surrounding air, the system generates significantly more heat energy than the electricity it consumes. Combined with advanced inverter technology and intelligent controls, this helps keep running costs low while maintaining excellent heating performance.
The durable aluminium cabinet is built to withstand outdoor conditions, while the titanium heat exchanger is suitable for both chlorine and saltwater pools.
Â
Quiet When You Need It
Nobody wants a noisy heat pump beside their pool.
TurboSilence technology continuously adjusts the compressor and fan speed to deliver the heating your pool needs without unnecessary noise. Once your pool reaches temperature, the unit automatically slows down, making it far quieter than traditional fixed-speed heat pumps.
Â
Designed to Extend the Swimming Season
The Orilux AXS range is designed to operate in outdoor temperatures from -10°C to 43°C, helping you enjoy warmer water for longer, even when the weather begins to cool.
Â
Â
FAQ's about the Orilux XP
Â
How does an inverter heat pump save money?
Instead of constantly running at full power, an inverter heat pump adjusts its speed to match demand, reducing electricity consumption while maintaining a stable pool temperature.
Â
Can I use this with a saltwater pool?
Yes. The titanium heat exchanger is suitable for both saltwater and chlorine pools.
Â
Can it heat my pool in spring and autumn?
Yes. The AXS range operates in air temperatures from -10°C to 43°C, helping extend your swimming season.
Â
How do I choose the correct size?
This depends on your pool volume, location and whether you use a pool cover. If you're unsure, we're happy to help you choose the right model.
