Place the end of the solar cover between the two mesh sections, positioning it firmly against the welded edge.
-
Insert a screwdriver through each pre-made hole in the mesh and push through the solar cover.
-
Fit the press-fix connectors through the holes.
-
Place the supplied black tubular fitting over each press-fix connector.
-
Using a soft hammer or mallet, gently tap the top to ensure a tight and secure fit.
-
Snip off any protruding connector stalks once secured.
Reducing the Mesh Length (If Required)
-
To shorten the mesh, cut equal amounts from both ends to maintain balance.
Reducing the CoverGuide Tube Length (If Required)
-
Locate the two tube sections labelled “End Section / Cut This End Only.”
-
Cut equal lengths from both tubes, including the foam inserts.
-
Always cut near the labelled end of each tube.

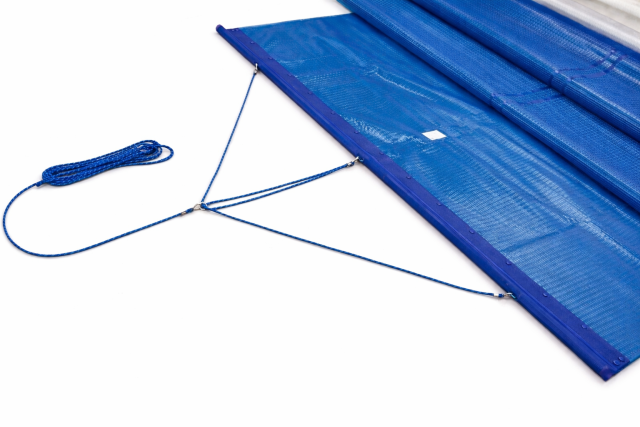

Tow Rope Assembly
-
Follow the tow rope assembly instructions according to your CoverGuide size:
-
Small CoverGuide
-
Medium CoverGuide
-
Large CoverGuide
-
End Cap
-
Fit the end caps once installation and any trimming is complete.
