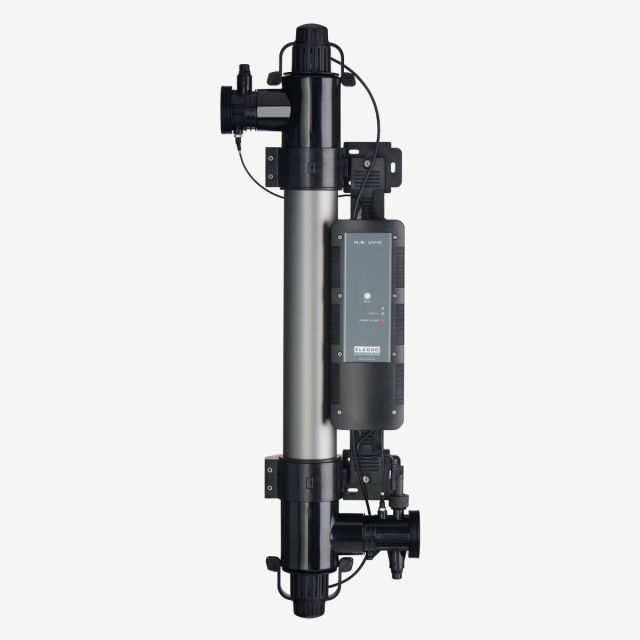

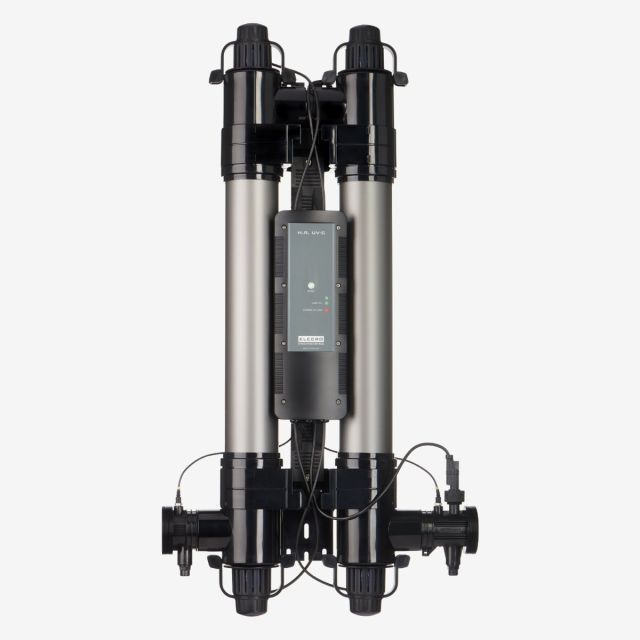

Elecro H.R UV-C
SKU
HRUV-C
The super reflective properties of the Elecro H.R.UV-C optimises the UV-C radiation and dramatically increases the performance.
The super reflective properties of the Elecro H.R.UV-C optimises the UV-C radiation and dramatically increases the performance.
Elecro H.R UV-C
The super reflective properties of the Elecro H.R.UV-C optimises the UV-C radiation and dramatically increases the performance.
Features & Benefits
- Highest UV reflective index on the market equating to supreme efficiency
- E-PTFE reach chamber is extremely repellent, maintaining UV reflectivity
- Up to 95% reflection amplifying the exposure of microorganisms to UV
- No harmful gases or by-products produced
- Neutralises bacteria, viruses, algae and fungai that traditional chemicals cannot
- Optional smart peristaltic dosing system for chlorine/hydrogen peroxide (Pro model only)
- Powerful sterilisation and eliminates the smell of chlorine
- Average lamp life expectancy: Up to 2 years
- Equipped with intelligent lamp life indicator
- Sea and salt chlorinated water compatible
- Available in three sizes: Mini (30m³), Single (55m³) and Double (110m³)
- Models: Standard, Classic and Pro
| Specification | Details |
|---|---|
| Power Supply | Single phase 100V–240V |
| Min. Flow Rate | 1.5 m³/h |
| Max. Flow Rate | Mini: 12,000 litres/hour (12 m³/h)Single: 16,000 litres/hour (16 m³/h)Double: 32,000 litres/hour (32 m³/h) |
| Max. Pool Size | Mini: 30,000 litres (30 m³)Single: 55,000 litres (55 m³)Double: 110,000 litres (110 m³) |
| Max. Power Consumption | Mini: 40 WSingle: 64 WDouble: 128 W |
| Lamp | Low pressure / high output |
| Lamp Life | Up to 9,000 hours |
| Dosing Rate | Exceeds the equivalent of 30 mJ/cm² at max. flow rate |
| Ingress Protection Rating | IP65 |
| Frequency | 50 / 60 Hz |
| Working Pressure | 3 bar maximum |
| Water Connections | 2″ / 63 mm stepped ABS unions + reducers 1½″ / 50 mm |
| Salt Water | 100% chlorinated salt and sea water safe |
| Mounting | Vertical or horizontal wall mounting |
| Oxidisation Process | UV |
Manufactures Warranty - 2 years
| Restricted Product | No |
|---|
