Velocity Swim Jet Counter Current Unit

Velocity Swim Jet Counter Current Unit

Turn almost any swimming pool into a continuous swimming lane with the HeatForm Velocity Swim Jet. Designed and manufactured in the UK, the Velocity uses advanced hydraulic technology to create a current that feels more natural than traditional swimming jets.

Whether you're training for a competition, improving your fitness or simply want to enjoy swimming at home, the fully adjustable flow allows you to tailor the current to your ability. Unlike many conventional systems, Velocity combines impressive performance, with low running costs, quieter operation and long-term reliability.



---

Built Around Inverter Technology

At the heart of the system is a 5HP (4kw) inverter-driven hydraulic motor.

Unlike older swim jet systems that run continuously on full power, the Velocity automatically adjusts the motor speed to match your selected flow rate. This means the systems only uses the power it needs.

The result is:

• Lower electricity consumption
• Quieter operation
• Less wear on moving parts
• Longer component life
• Greater control over your swimming speed

It also operates from a standard 230V-240V single-phase electrical supply, making installation more straightforward than many commercial-style systems.



---

Powerful Performance

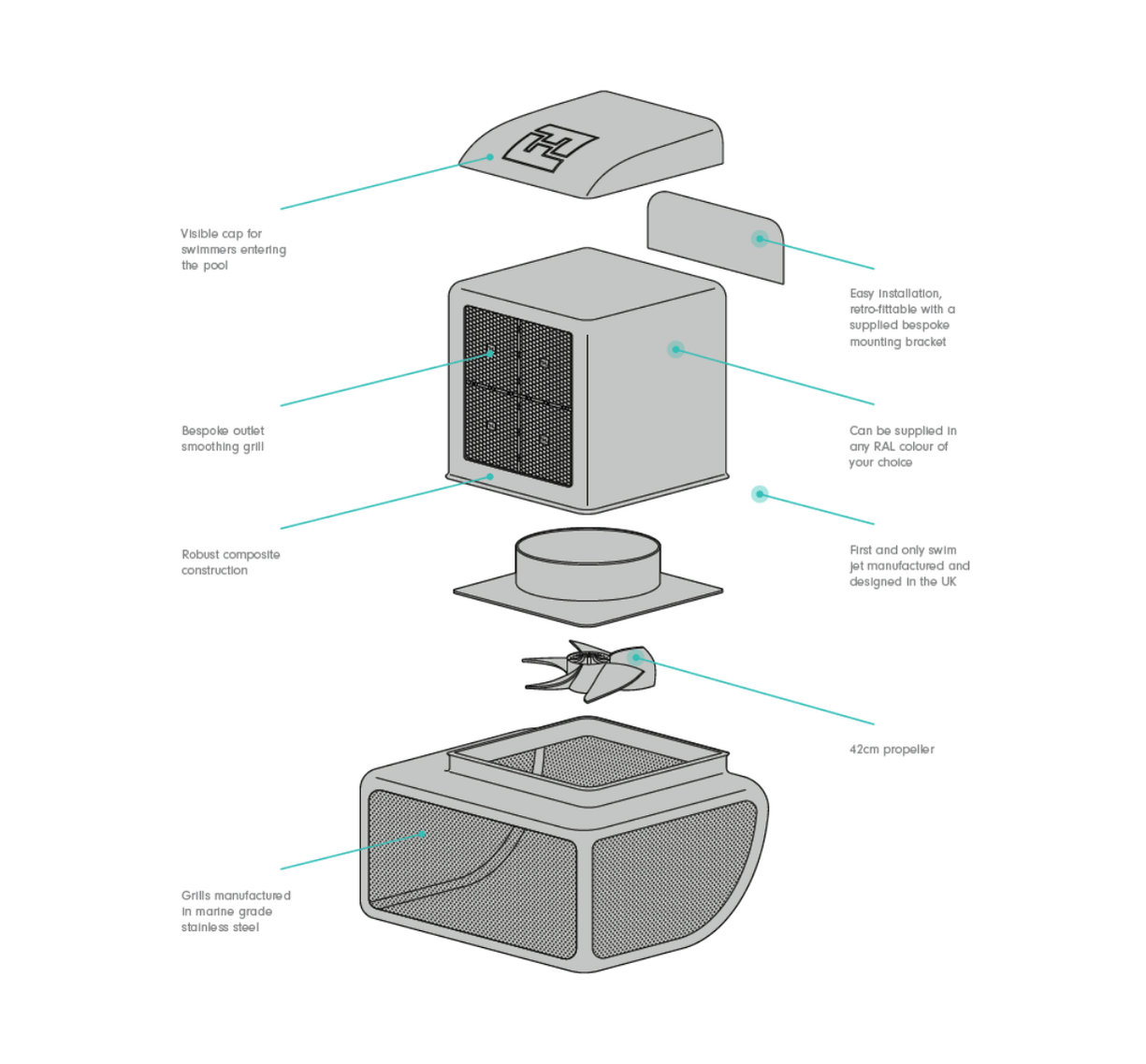

The hydraulic power pack delivers over 100 bar of hydraulic pressure to the swim jet head unit, where a specially developed 42cm propellor produces a powerful and consistent flow.

The water is then straightened through HeatForm's custom-designed grid system, creating a wide, even current across the pool.

When installed in a 10m x 5m x 1.5m swimming pool, the Velocity is capable of producing a pace equivalent to approxmiately 58 seconds per 100 meters, making it suitable for elite swimmings while remaining fully adjustable for beginners and recreational users.



---

Swimming That Feels Natural

The Velocity Swim Jet has been developed to produce a broad, deep current rather than a narrow, concentrated stream of water. This creates a more comfortable swimming experience that closely resembles swimming against a river current, allowing you to focus on your technique without constantly turning at the end of the pool.

With ten preset speed levels, plus fine adjustment in 2% increments, you can easily find the flow rate that suits your training or leisure swimming.



---

Perfect for Existing or New Pools

The Velocity Swim Jet can be incorporated into a new swimming pool build or installed into many existing pools, allowing you to enjoy endless swimming without needing a large commercial-sized pool.

Simply reduce the flow when you want a more relaxed swim, or increase it for interval training, endurance sessions or competitive practise.



---

Suitable for the Whole Family

One of the biggest advantages of the Velocity system is it's versatility.

The current can be adjusted to suit:

• Competitive swimmers
• Triathletes
• Fitness training
• Rehabilitation exercise
• Leisure swimming
• Family fun

Whether you're looking for a training aid or a more enjoyable swimming experience, the Velocity adapts to you.



---

Velocity Technical Specifications



	Over The Wall	Hidden
	Performance
Flow Capacity	Up to 1000 m3/hr	Up to 1000 m3/hr
Speed per 100m swim	1’02	1’20
	Main Jet
Head Unit	Composite	Composite body with PVC cover panel
Colours	Light Grey or Anthracite	Panel can be lined or tiled
Minimum Water Depth	1.0m	1.0m (Cover Panel 1.2m or 1.5m)

	Specifications
Supply Voltage	230-240(V)	380-480(V)	230-240(V)	380-480(V)
Nominal Current (A)	15.5	11.5	15.5	11.5
Rated Current (A)	25	16	25	16
Motor	5HP (4kW)
Control	Inverter drive
Motor RPM	3,700		3,700
Hydraulic Oil	40 litres Organic Biodegradable Oil
Main Body (HxWxD)	1105 x 865 x 663 mm		1105 x 865 x 663 mm. Required recess 2m x 0.6m
Powerpack (HxWxD)	680 x 470 x 360 mm
Controller (HxWxD)	325 x 210 x 210 mm





---

Frequently Asked Questions on the Velocity Swim Jet



Is the swimming Speed adjustable on the Velocity Swim Jet?

Yes, the system includes ten preset speed levels with additional 2% adjustments, allowing you to fine tune the water flow to suit your ability.



Is the Velocity suitable for beginners?

Absolutely, the current can be reduced for gentle swimming and gradually increased as confidence and fitness improve.



How much electricity does the Velocity use?

Because the inverter only supplies the power required for your chosen speed, the Velocity is significantly more energy efficient than conventional fixed-speed systems. The standard model operates from a 230-240V single-phase electrical supply, making it suitable for most domestic installations.



Is the Velocity compatible with my pool chemicals?

Yes, the enclosed hydraulic design is compatible with most common swimming pool chemical water treatment systems.



---

Need Help Choosing the Right Swim Jet for Your Pool?

If you'd like advice before ordering, our swimming pool specialists are here to help.

Whether you're planning a new pool, upgrading an existing one or have questions about installation, we'll be happy to talk you through the options and help you choose the right setup for your pool.

Call us on 0333 900 4040 or get in touch using our contact form, and one of our team will be happy to help.
