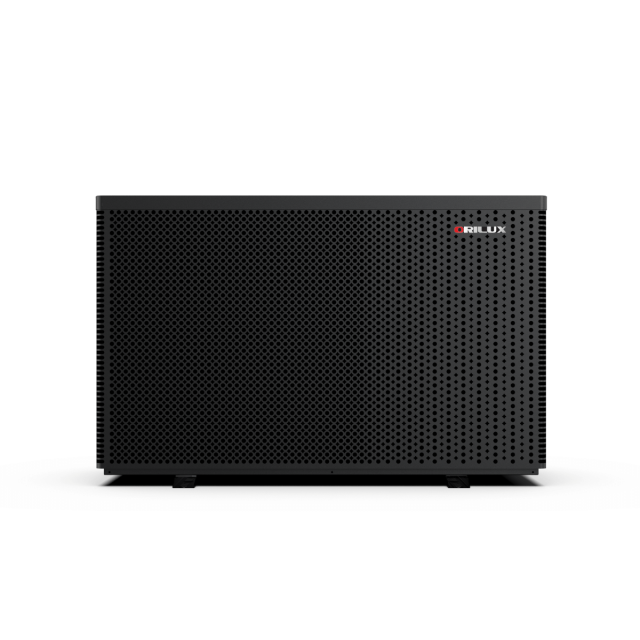

Orilux XP Swimming Pool Heat Pump R290
Orilux XP Swimming Pool Heat Pump R290
The Orilux XP R290 range has been developed for customers who want the latest heat pump technology without compromising on performance or efficiency.
Built around advanced inverter technology and natural R290 refrigerant, the XP range delivers exceptional heating performance while using significantly less electricity than conventional pool heaters.
Whether you're upgrading an older heat pump or installing a new pool heating system, the XP range offers a future-ready solution that's built to perform for years to come.
Â
Key Features
- Energy-saving full DC inverter technology
- Uses environmentally friendly R290 refrigerant
- COP ratings up to 30 in optimum conditions
- Turbo mode for faster pool heating
- Smart mode for everyday efficient operation
- Suitable for chlorine and saltwater pools
- Operates in air temperatures from -20°C to 43°C
- Quiet operation with low sound levels
- Durable aluminium alloy cabinet
- Titanium heat exchanger for long service life
- Available in a wide range of sizes to suit different pool volumes
- Designed for residential swimming pools
Future Proof R290 Refrigerant
The XP range uses R290, one of the most environmentally friendly refrigerants available today.
With an extremely low Global Warming Potential (GWP) of just 0.02, R290 is designed to meet upcoming European refrigerant regulations while reducing environmental impact. As higher GWP refrigerants continue to be phased out, choosing an R290 heat pump helps future-proof your investment.
Â
Outstanding Energy Efficiency
Heating a swimming pool doesn't need to come with high electricity bills.
Thanks to intelligent inverter technology and high-performance components, the XP range can achieve COP ratings of up to 30 under optimum conditions, producing many times more heat energy than the electricity it consumes.
The result is lower running costs and efficient, consistent heating throughout the swimming season.
Â
Powerful Heating with TurboSilence Technology
TurboSilence technology allows the heat pump to increase output when rapid heating is needed before automatically reducing speed once the pool reaches temperature.
This not only helps heat your pool faster but also keeps operating noise remarkably low during everyday use.
Â
Built to Last
Every XP heat pump is manufactured using premium components, including:
- Twin rotary DC inverter compressor
- Titanium heat exchanger
- Aluminium alloy cabinet
- Intelligent inverter controller
- OTA software updates
- Comprehensive factory testing
Â
Specifications
Â
| Model | AX26-90P | AX26-105P |
| Advised pool volume (m3) | 55~90 | 65~105 |
| Operating air temperature (℃) | -20~43 | |
| Performance Condition: Air 26°C, Water 26°C, Humidity 80% |  |  |
| Heating capacity (kW) in Turbo mode | 26.0 | 32.0 |
| Heating capacity (kW) in Smart mode | 21.7 | 26.6 |
| COP | 20.3~7.2 | 21.3~7.1 |
| COP at 50% capacity | 14.6 | 14.5 |
| Performance Condition: Air 15°C, Water 26°C, Humidity 70% |  |  |
| Heating capacity (kW) in Turbo mode | 17.5 | 21.7 |
| Heating capacity (kW) in Smart mode | 14.5 | 18.0 |
| COP | 7.7~5.3 | 8.1~5.2 |
| COP at 50% capacity | 7.1 | 7.3 |
| Performance Condition: Air 7°C, Water 26°C, Humidity 90% |  |  |
| Heating capacity (kW) in Turbo mode | 15.0 | 17.7 |
| COP | 6.6~4.3 | 7.1~4.3 |
| Performance Condition: Air 35℃,Water 28℃, Humidity 80% |  |  |
| Cooling capacity (kW)(Optional) | 12.3 | 14.4 |
| Sound pressure at 1m dB(A) | 41.1~50.3 | 42.5~50.9 |
| Sound pressure of 50% capacity at 1m dB(A) | 44.4 | 45.5 |
| Sound pressure at 10m dB(A) | 21.1~30.3 | 22.5~30.9 |
| Compressor | Twin-rotary DC-inverter | |
| Heat exchanger | Lightning heat exchanger | |
| Casing | Aluminum-alloy Casing | |
| Power supply | 230V~/1Ph/50Hz | |
| Rated input power at air 15°C (kW) | 0.38~3.3 | 0.44~4.17 |
| Rated input current at air 15°C (A) | 1.65~14.35 | 1.91~18.13 |
| Advised water flux (m³/h) | 8~10 | 10~12 |
| Water pipe in-out size (mm) | 48.3 | |
| Net Dimension LxWxH (mm) | 1146×536×955 | 1315×536×1055 |
| Net weight (kg) | 113 | 133 |
| Qty per 20'FT / 40'HQ (sets) | 34/72 | / |
Â
Â
FAQ's about the Orilux XP
Â
Can I leave the heat pump running throughout the season?
Yes. The XP range is designed for continuous, efficient operation and will automatically adjust its output to maintain your chosen pool temperature.
Â
What does COP mean on a Swimming Pool Heat Pump?
COP (Coefficient of Performance) measures how efficiently a heat pump converts electricity into heat. The higher the COP, the more efficient the heat pump is.
Â
Is the Orilux XP Heat Pump quiet?
Yes. TurboSilence technology continuously adjusts compressor and fan speeds, helping keep noise levels to a minimum during normal operation.
