Clearance - Lacron Top Mount 16" - c/w Pressure Gauge

Clearance - Lacron Top Mount 16" - c/w Pressure Gauge

This item is in clearance due to it being an old item of stock, still in great working condition and come complete with pressure gauge.

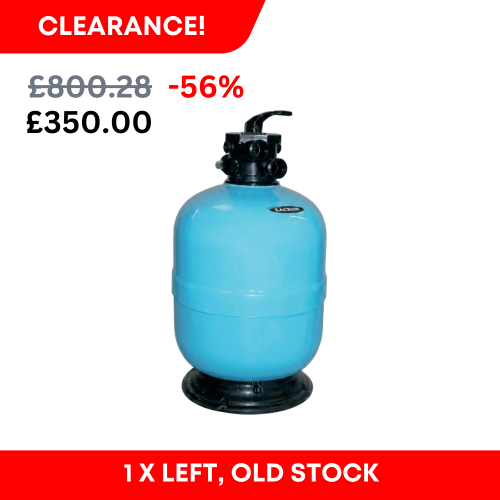

The Lacron Top Mount 16" Filter with Pressure Gauge is a professional-grade swimming pool sand filtration system designed for reliable and efficient water filtration. Manufactured from glass reinforced polyester, the filter tank is highly durable and resistant to UV exposure and corrosion, making it suitable for long-term outdoor installation.

The filter is supplied with a 1.5" six-way top mount multiport valve (screw type) for quick-connect barrel unions and easy installation and maintenance. With clear sight glass, it makes it easy to monitor the backwash process and the integrated pressure gauge simplifies the indication of filter operating conditions.

The 16" model delivers a flow rate of 6.5 m³/hr based on a 10-metre head.

Key Features

• Glass reinforced polyester (GRP) filter tank
• UV and corrosion resistant construction
• 1.5" (50 mm) six-way top mount multiport valve
• Quick-connect barrel unions
• Integrated pressure gauge
• Clear sight glass for backwash inspection
• Hydraulically balanced laterals to maximise flow
• Winter drain for seasonal maintenance
• Sturdy filter base
• Pressure tested to 4 bar
• Maximum operating pressure: 2.5 bar
• Flow rate: 6.5 m³/hr at 10 m head

Quality Maintenance

Lacron Sand Filters (LSR) are tested to 4 Bar and are designed to operate at a maximum pressure of 2.5 Bar.

5 year tank warranty

1 year warranty on other
