LX WP200-II/300-II/400-II Pumps Dual-Speed

SKU
LX WP200-II/300-II Pumps Dual-Speed

Powerful, Reliable, and Energy-Efficient Pumps for Your Hot Tub!

The LX WP200-II (2.0 HP) and LX WP300-II (3.0 HP) are dual-speed pumps engineered to deliver superior water circulation and jet performance. Built with durable materials and a thermally protected motor, these pumps ensure longevity and efficient operation for your hot tub or spa.

  • Dual-Speed Functionality: Energy-saving low-speed mode for filtration and high-speed mode for powerful jets.
  • Power Options: Choose between 2.0 HP (WP200-II) or 3.0 HP (WP300-II) for tailored performance and needs.
  • Wide Compatibility: Designed to fit most hot tubs with standard 2-inch plumbing connections.
  • Durable Design: Compact, reliable, and built to withstand continuous operation in demanding spa environments.

Looking for single-speed options? Check out our LX Single-Speed Pumps.

Upgrade Your Hot Tub Today!

Experience the perfect combination of efficiency and performance with the LX WP200-II and WP300-II pumps. Order now to transform your spa experience!

Powerful, Reliable, and Energy-Efficient Pumps for Your Hot Tub!

The LX WP200-II (2.0 HP) and LX WP300-II (3.0 HP) are dual-speed pumps engineered to deliver superior water circulation and jet performance. Built with durable materials and a thermally protected motor, these pumps ensure longevity and efficient operation for your hot tub or spa.

  • Dual-Speed Functionality: Energy-saving low-speed mode for filtration and high-speed mode for powerful jets.
  • Power Options: Choose between 2.0 HP (WP200-II) or 3.0 HP (WP300-II) for tailored performance and needs.
  • Wide Compatibility: Designed to fit most hot tubs with standard 2-inch plumbing connections.
  • Durable Design: Compact, reliable, and built to withstand continuous operation in demanding spa environments.

Looking for single-speed options? Check out our LX Single-Speed Pumps.

Upgrade Your Hot Tub Today!

Experience the perfect combination of efficiency and performance with the LX WP200-II and WP300-II pumps. Order now to transform your spa experience!

Product ImageProduct Name RRP Discount Price Qty / StockStock

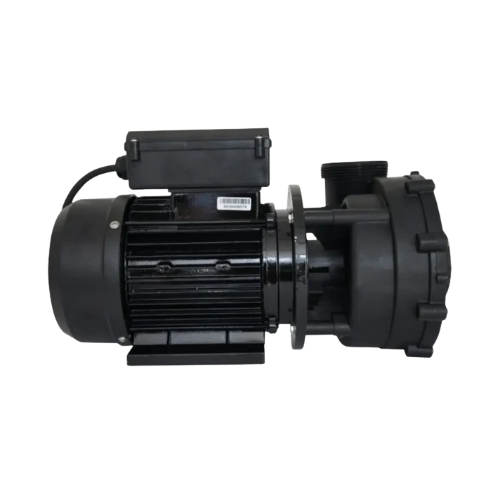

LX WP300-II Pump Dual Speed 3.0HP
LX WP300-II Pump Dual Speed 3.0HP
SKU: LX WP300-II Pump Dual Speed 3.0HP
LX WP300-II Pump Dual Speed 3.0HP
SKU: LX WP300-II Pump Dual Speed 3.0HP
£1,021.74 67% £340.27

In Stock

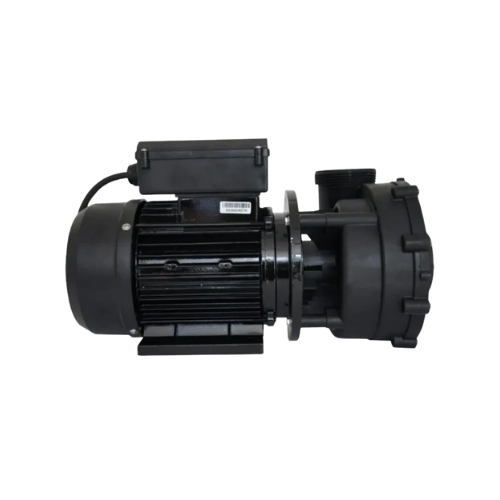

LX WP200-II Pump Dual-Speed 2.0 HP
LX WP200-II Pump Dual-Speed 2.0 HP
SKU: LXWP200
LX WP200-II Pump Dual-Speed 2.0 HP
SKU: LXWP200
£1,021.74 67% £340.27

In Stock

Lead TimeLead Time: Next Working Day

WishlistFavourites

LX WP200-II, WP300-II & WP400-II Dual-Speed Pumps: Powerful & Efficient for Your Hot Tub

Discover the reliable and versatile WP200-II (2.0 HP), WP300-II (3.0 HP), and WP400-II dual-speed pumps for your hot tub or spa. Perfect for both water circulation and invigorating jet performance, these pumps are compatible with a wide range of hot tub models.

LX WP200-II Pump (2.0 HP)

The LX WP200-II is a dual-speed pump with a powerful 2.0 HP motor. It is commonly used in hot tubs and spas, particularly those manufactured in China. This pump is built to ensure reliable water circulation and jet propulsion for an enhanced spa experience.

  • Motor Power: 2.0 HP (1.5 kW)
  • Low-Speed Performance: 0.26 HP, 2.4 Amps, 1450 RPM
  • High-Speed Performance: 1.25 HP, 7 Amps, 2900 RPM
  • Capacitor: 30 µF
  • Plumbing Connections: 2-inch suction and discharge ports (78 mm thread diameter)
  • Design: Centre suction with side discharge
  • Construction: Thermally protected motor for durability
  • Compatibility: Chinese spas, Coasts spas, some Jacuzzi models, and more
  • Dimensions: 435mm x 200mm x 235mm

LX WP300-II Pump (3.0 HP)

The LX WP300-II is a high-performance, dual-speed pump with a powerful 3.0 HP motor. It is perfect for spas requiring robust jet propulsion and reliable water circulation.

  • Motor Power: 3.0 HP (2.2 kW)
  • Low-Speed Performance: 3.2 Amps, 1450 RPM
  • High-Speed Performance: 10 Amps, 2900 RPM
  • Capacitor: 40 µF
  • Plumbing Connections: 2-inch suction and discharge ports (78 mm thread diameter)
  • Design: Centre suction with side discharge
  • Construction: Thermally protected motor for long-lasting performance
  • Compatibility: Chinese spas, Coasts spas, some Jacuzzi models, and more
  • Dimensions: 435mm x 200mm x 235mm

LX WP400-II Pump (4.0 HP)

The LX WP400-II is a powerful, dual-speed pump with a robust 4.0 HP motor. Designed for consistent performance, this pump is ideal for hot tubs requiring strong jet propulsion and reliable water circulation.

  • Motor Power: 4.0 HP (3.0 kW)
  • Low-Speed Performance: 1.0 HP, 4.5 Amps, 1450 RPM
  • High-Speed Performance: 12.0 Amps, 2900 RPM
  • Capacitor: 50 µF
  • Plumbing Connections: 2-inch suction and discharge ports (78 mm thread diameter)
  • Design: Centre suction with side discharge
  • Construction: Thermally protected motor for long-lasting performance
  • Compatibility: Chinese spas, Coasts spas, some Jacuzzi models, and more
  • Dimensions: 415mm x 197mm x 202mm

Key Features

  • Powerful dual-speed motors (2.0 HP, 3.0 HP, or 4.0 HP) for exceptional water circulation and jet propulsion.
  • Thermally protected motors prevent overheating and ensure durability.
  • Standard 2-inch plumbing connections for easy installation.
  • Compact design for compatibility with a variety of hot tubs and spas.
  • 12-month warranty for peace of mind.

Technical Specifications

Feature WP200-II (2.0 HP) WP300-II (3.0 HP) WP400-II (4.0 HP)
Motor Power 2.0 HP 3.0 HP 4.0 HP
Low Speed 0.26 HP, 2.4 A, 1450 RPM 3.2 A, 1450 RPM 1.0 HP, 4.5 A, 1450 RPM
High Speed 1.25 HP, 7 A, 2900 RPM 10 A, 2900 RPM 12.0 A, 2900 RPM
Capacitor 30 µF 40 µF 50 µF
Plumbing Connections 2-inch suction/discharge 2-inch suction/discharge 2-inch suction/discharge
Dimensions (L x W x H) 435mm x 200mm x 235mm 435mm x 200mm x 235mm 415mm x 197mm x 202mm
Voltage 230 V 230 V 230 V
Frequency 50 Hz 50 Hz 50 Hz

Applications

The LX WP200-II, WP300-II, and WP400-II pumps are ideal for hot tubs and spas, offering reliable performance and compatibility with a variety of systems, including:

  • Chinese Spas: Widely compatible with many brands.
  • Coasts Spas: Note: Not compatible with the American "Coast Spas" brand.
  • Jacuzzi® Models: Frequently used in older and modern designs.

    Additional Information

    The LX Jet pump range includes both single-speed (LP series) and dual-speed (WP series) pumps (click here for this listing). These pumps are direct replacements for many models, including Sundance® and Jacuzzi® spas. Wet ends can be rotated to 3, 9, and 12 o'clock positions for flexibility during installation.

    Important Note: 2008 LP & WP pumps have shorter suction and discharge ports. Please check dimensions carefully to ensure compatibility with your spa's plumbing system.

    Looking for Single-Speed Pumps?

    If you're interested in double-speed pumps, check out our LP Series Single-Speed Pumps. Perfect for spas requiring flexible low- and high-speed operations.

    Why Buy from Us?

    Master Distributor: Genuine LX pumps with a 12-month warranty.

    Competitive Pricing: We will price match on any product guaranteed.

    Fast Delivery: Next-working-day delivery available to minimise downtime.

    Expert Support: Assistance with pump selection, installation, and maintenance.

Upgrade Your Spa Today!
Order the LX WP200-II, WP300-II, or WP400-II now and transform your hot tub experience!
