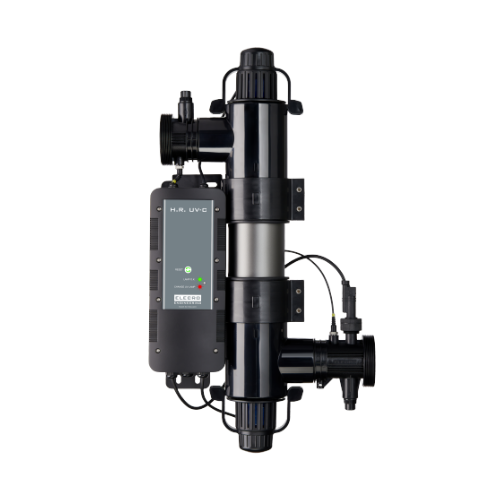

Elecro H.R UV-C Mini Classic - upto 30m3 /12m3/hr Max Flow 30w
The Elecro H.R.UV-C Mini Classic is a compact 30W UV-C pool steriliser, designed for swimming pools up to 30m³. It features a reflective E-PTFE chamber, an integrated flow switch and a lamp life indicator to support effective pool water treatment.
The Elecro H.R.UV-C Mini Classic is a compact 30W UV-C pool steriliser, designed for swimming pools up to 30m³. It features a reflective E-PTFE chamber, an integrated flow switch and a lamp life indicator to support effective pool water treatment.
Elecro H.R UV-C Mini Classic - upto 30m3 /12m3/hr Max Flow 30w
The Elecro H.R.UV-C Mini Classic UV-C Pool Steriliser is designed for swimming pools with a volume of up to 30,000 litres. It uses UV-C light to help treat water as it passes through the unit, complementing the pool's existing chemical treatment system.
Its E-PTFE chamber is designed to reflect UV light within the unit, while the integrated flow switch monitors waterflow. A built-in lamp life indicator helps you keep track of when the UV-C lamp needs replacing.. With options for horizontal or vertical wall mounting and connections for different pipe sizes, the Mini Classic is a practical addition to a suitable pool filtration system.
How Does The Elecro H.R UV-C Mini Classic Work?
The Elecro H.R.UV-C Mini Classic treats water as it flows through the unit. The UV-C lamp exposes the passing water to ultraviolet light, helping to disrupt the reproduction of microorganisms. The reflective chamber is designed to make use of UV light within the unit. The integrated flow switch monitors water flow during operation.
UV-C treatment works alongside your pool's existing chemical sanitisation system; it does not replace the need to maintain appropriate water chemistry and sanitiser levels.
Key Features
- Suitable for pools up to 30m³ – Designed for swimming pools holding up to 30,000 litres of water.
- 30W UV-C lamp – Helps treat pool water as it passes through the unit.
- Reflective E-PTFE chamber – Designed to reflect UV light within the chamber, with up to 95% UV reflection stated in the supplied product information.
- Integrated flow switch – Monitors water flow through the unit.
- Lamp life indicator – Displays the remaining lamp life, helping you identify when replacement is needed.
- 9,000-hour lamp life – Approximate lamp life under normal operating conditions.
- Suitable for different water systems – Compatible with freshwater, chlorinated saltwater and seawater.
- Flexible mounting – Can be mounted horizontally or vertically on a wall.
- Adaptable pipe connections – Supports 2"/63mm connections, with reducers for 1½"/50mm pipework.
Technical Specifications
| Specification | Details |
| Brand | Elecro |
| Product | H.R.UV-C Mini Classic |
| Product code | HR-30-UK |
| Product type | UV-C pool steriliser |
| Lamp output | 30W |
| Maximum power consumption | 40W |
| Suitable pool volume | Up to 30,000 litres / 30m³ |
| Minimum flow rate | 1m³/h (1,000 litres/hour) |
| Maximum flow rate | 12m³/h (12,000 litres/hour) |
| Lamp life | Approximately 9,000 hours under normal conditions |
| Maximum working pressure | 3 bar |
| Pipe connections | 2"/63mm stepped ABS unions |
| Reducers | 1½"/50mm |
| Compatible water types | Freshwater, chlorinated saltwater and seawater |
| Mounting | Horizontal or vertical wall mounting |
| Dimensions (L × H × D) | 623 × 349 × 108mm |
| Net weight | 4.83kg |
| Gross weight | 6.70kg |
Installation and Maintenance
Installation must follow the manufacturer's instructions and all electrical work should be carried out by a qualified electrician.
- Install the unit after the pump, filter and heating equipment, but before chemical dosing equipment.
- Ensure the system operates within the specified flow rate and maximum working pressure.
- Allow at least one metre of clearance at one end of the unit for lamp and quartz sleeve maintenance.
- Install the unit in a dry, permanent, weatherproof area.
- Ensure the electrical installation is carried out by a qualified electrician in accordance with the applicable regulations.
Lamp Life Indicator
The integrated lamp life indicator helps you monitor the UV-C lamp and identify when replacement is required.
| Indicator colour | Meaning | Recommended action |
| Green | More than 500 hours remaining | Normal operation |
| Amber | Fewer than 500 hours remaining | Arrange a replacement lamp |
| Red | Lamp timer has reached zero | Replace the lamp |
Frequently Asked Questions
What size pool is the Elecro H.R.UV-C Mini Classic suitable for?
It is designed for swimming pools with a volume of up to 30,000 litres (30m³).
What is the required water flow rate?
The specified flow range is 1m³/h to 12m³/h. The unit must be operated within the manufacturer's stated limits.
Does UV-C treatment replace chlorine or other pool chemicals?
No. UV-C treatment complements the existing pool sanitisation system but does not replace the need for appropriate chemical treatment and water balance.
How long does the UV-C lamp last?
The lamp has an approximate life of 9,000 hours under normal operating conditions. Actual life depends on use and operating conditions.
Can the unit be installed vertically?
Yes. The unit can be mounted horizontally or vertically on a wall, following the manufacturer's installation instructions.
What maintenance does the unit require?
Annual maintenance is essential. The quartz sleeve should be inspected and cleaned, and serviceable components checked or replaced when necessary.
Important Information
The Elecro H.R.UV-C Mini Classic must be installed and maintained in accordance with the manufacturer's instructions.
Water quality must remain within the manufacturer's specified limits. Failure to meet these requirements may void the warranty.
Please consult the installation and operating manual before installing or servicing the unit.
| Restricted Product | No |
|---|---|
| RRP | 536.30 |
