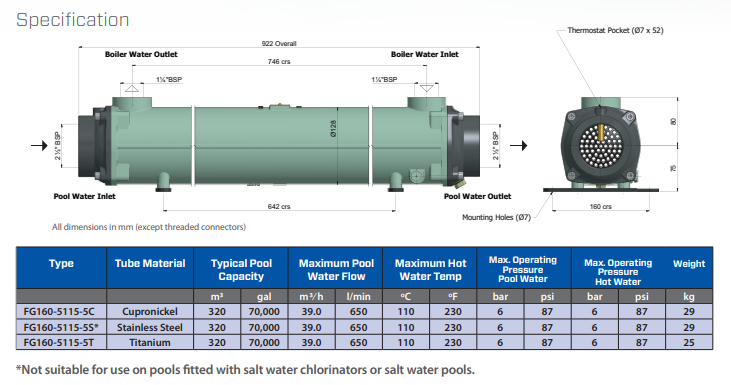

Bowman Heat Exchanger 1,000,000BTU (300kW) - FG160 - 5115-5T - Titanium

Introduction

The Bowman FG160-5115-5 is an efficient shell and tube swimming pool heat exchanger which is suitable for use with either boiler heated hot water, or renewable energy heating systems, such as heat pumps or solar collectors. The cast end covers are finished in ‘C’ coat, an advanced technology coating, which is highly corrosion resistant and the unit is available with either a titanium, cupro-nickel or stainless steel tube core.

Typical Heat Transfer

Boiler heating - 350kW
Renewable energy - 150kW

Product Benefits

Proven – heats pools fast, reducing energy costs
Easy to install – 2 ½” BSP threaded end covers with thermostat pocket
Durability – salt water and mineral rich fresh water compatible
Simple to maintain – easy disassembly for routine maintenance
Titanium models – full 10 year warranty on titanium materials

Water Flow

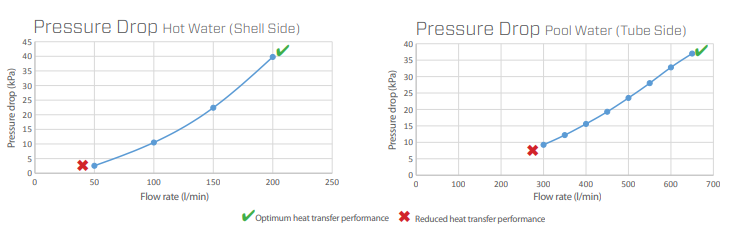

As the graphs and table below illustrate, providing the right water flow volume is vital to the performance of the heat exchanger. If the flow rate of either the hot water supply, or the pool water circuit is too low, the heat exchanger will not perform at its designed efficiency and will be unable to transfer all the available heat energy in to the pool water. For more information please visit; https://ej-bowman.com/knowledge-centre/why-doesn’t-my-pool-heat-up-faster/
