Blue Lagoon UV-C Systems
Blue Lagoon UV-C sterilisers kill bacteria, viruses and algae as water passes through them, so you can run your pool on far less chlorine. Choose from a 16W spa unit up to the 130W amalgam model for pools up to 130 m³. The 40W, 75W and 130W models have a built-in lamp countdown timer.
A UV-C unit needs plumbing in after the filter and a properly earthed supply. We work with over 1,000 trade installers and can arrange for one to fit it for you, so just get in touch.
Found it cheaper elsewhere? Fill in our price match form and we'll do our best to match or beat it.
Blue Lagoon UV-C sterilisers kill bacteria, viruses and algae as water passes through them, so you can run your pool on far less chlorine. Choose from a 16W spa unit up to the 130W amalgam model for pools up to 130 m³. The 40W, 75W and 130W models have a built-in lamp countdown timer.
A UV-C unit needs plumbing in after the filter and a properly earthed supply. We work with over 1,000 trade installers and can arrange for one to fit it for you, so just get in touch.
Found it cheaper elsewhere? Fill in our price match form and we'll do our best to match or beat it.
About the Blue Lagoon UV-C System
UV-C is one of the simplest upgrades you can make to a pool. Water from your filter runs through a stainless steel chamber past a UV-C lamp, and the light kills bacteria, viruses, algae and fungi on the way through, including chlorine-resistant bugs like Cryptosporidium. Nothing is added to the water and you can't overdose it.
What you notice is the water. It's clearer and fresher, with much less of that chlorine smell, because UV-C also breaks down the bonded chlorine (chloramines) that cause it, along with red eyes and itchy skin. You'll still need some chlorine in the pool, but Blue Lagoon say you can cut your usage by up to 80%.
The reactor is made from 316L stainless steel, which reflects the UV-C light back into the water and boosts its effect by up to 35%. An electronic ballast keeps the lamp running at its best.

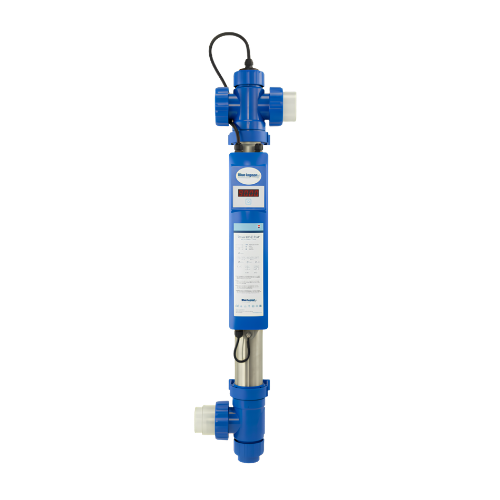

The 40W, 75W and 130W Timer models have a digital countdown that tracks your lamp's hours and starts flashing four weeks before it's due for replacement, so you never end up running a lamp that's past its best. The 130W amalgam model also has a flow switch that turns the lamp off automatically if the water stops flowing.
There's a size for everything from a hot tub to a 130 m³ pool. Have a look at the table below, or call our tech team and we'll match a unit to your pool and pump.
Â
Key features
- Kills bacteria, viruses, algae and fungi, including Legionella and Cryptosporidium
- Breaks down chloramines, so less chlorine smell and fewer red eyes
- Cuts chlorine and chemical use by up to 80% (Blue Lagoon figure)
- 316L stainless steel reactor reflects UV-C for up to 35% more output
- Digital lamp countdown timer with replacement alerts (40W, 75W and 130W)
- Flow switch on the 130W amalgam model turns the lamp off if flow stops
- Glue connections for 63mm or 2" pipe, with adapters for 50mm and 1.5"
- Can be mounted horizontally or vertically
- Chemical-free treatment that can't be overdosed
Â
Blue Lagoon UV-C System specifications
| Model | Code | Pool size | Recommended flow* | Max flow | Lamp life | Countdown timer | Flow switch |
|---|---|---|---|---|---|---|---|

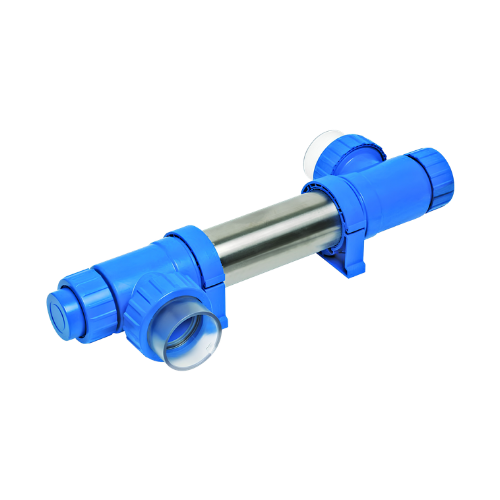

| 16W Spa UV-C | UVC16 | Up to 15 m³ | - | 7.2 m³/h | 9,000 hours | No | No |
| 40W UV-C Timer | UVC40-4A | Up to 35 m³ | 11 m³/h | 23 m³/h | 9,000 hours | Yes | No |
| 75W UV-C Timer | UVC75-4A | Up to 70 m³ | 16 m³/h | 23 m³/h | 9,000 hours | Yes | No |
| 130W UV-C Timer Amalgam | UVC130-4A | Up to 130 m³ | 22 m³/h | 23 m³/h | 16,000 hours | Yes | Yes |
| Specification | Detail |
|---|---|
| Housing | 316L stainless steel |
| UV-C wavelength | 253.7 nm |
| Power supply | 230V AC, 50/60Hz, electronic ballast |
| Maximum current | 0.29 A (40W), 0.57 A (75W), 1.1 A (130W) |
| Max pressure | 2 bar |
| Unit diameter | 70 mm |
| Unit length | 100 cm (16W spa unit: 56 cm) |
| Connections | 63mm / 2" glue three-piece couplings, with 63 x 50mm and 2" x 1.5" adapters |
| Mounting | Horizontal or vertical, with water flowing bottom to top |
| Space needed | 1 m at the lamp end to change the lamp, 30 cm at the other end |
| Fits | Part number |
|---|---|
| 40W Timer | E800901P |
| 75W Timer | E800902P |
| 130W Timer Amalgam | E800904 |
*Recommended flow gives a UV dose of 30 mJ/cm², the level generally used for pool disinfection. If your pump pushes more than this, consider the next size up.
Warranty
Blue Lagoon UV-C units come with a 2 year warranty against production defects. The UV-C lamp and quartz sleeve are wearing parts and will need replacing over time. The unit must be correctly earthed and plugged into a socket protected by an RCD, and it shouldn't be installed after a chlorine doser, pH controller or salt chlorinator. If you have a problem, call us and we'll help you sort it out.
Â
Frequently asked questions
Do I still need chlorine with a UV-C system?
Yes, but a lot less. UV-C only treats the water as it passes through the unit, so you still need a small chlorine residual in the pool itself. Because the UV does most of the heavy lifting, Blue Lagoon say you can cut chlorine use by up to 80%, and the water smells and feels much nicer.
Which Blue Lagoon UV-C size do I need?
Start with your pool volume: 16W for spas up to 15 m³, 40W for pools up to 35 m³, 75W up to 70 m³ and 130W up to 130 m³. Then check your pump's flow. Each unit has a recommended flow (11, 16 or 22 m³/h), and if your pump runs faster than that, go up a size so the water gets a full dose.
Where should the UV-C unit be installed?
The best place is straight after the filter. It must go before any chlorine doser, pH controller or salt chlorinator, never after them. Mount it out of direct sunlight in a dry, ventilated spot, with water flowing bottom to top, and leave 1 m clear at the lamp end so you can change the lamp later.
How often does the lamp need replacing?
The 40W and 75W lamps last 9,000 hours, which is about a year of 24-hour running. The 130W amalgam lamp lasts 16,000 hours. The countdown timer on the Timer models starts flashing four weeks before the lamp is due, then more quickly at two weeks and one week.
Can I use a Blue Lagoon UV-C on a salt water pool?
These stainless steel units aren't suitable for salt water pools. Call us and we'll suggest an alternative.
Does every model have a timer?
No. The 40W, 75W and 130W Timer models have the digital lamp countdown. The 16W spa unit doesn't, so you'll need to keep track of the lamp hours yourself.
How do I look after it?
Clean the unit at least twice a year. Switch off the power, drain it, then carefully remove the lamp and quartz sleeve and wipe the sleeve with a soft cloth and a suitable cleaner. Wear gloves and glasses, as the quartz is delicate. If you have hard water or algae, you may need to clean it more often.
